The ENGWE L20 3.0 Pro is a premium, foldable electric bike designed for urban commuting and light off-road adventures. With its powerful mid-drive motor, long-range battery, full suspension system, and smart connectivity, it offers a comfortable, efficient, and connected riding experience.

Key Features

Motor & Power: Mivice X700 Mid-Drive motor (48V) delivering 100 Nm of torque with torque sensor assist for a natural, responsive ride.
Battery & Range: 48V 15Ah (720Wh) Samsung 21700 lithium-ion battery with BMS protection. Lab-tested range of 160 km; real-world range of 140 km (PAS 1), 110 km (PAS 3), or 96 km (PAS 5).
Fast Charging: 54.6V 8A charger for rapid top-ups and minimal downtime.
Full Suspension: Hydraulic adjustable lockout front fork and 30mm rear travel for a smooth, comfortable ride across all surfaces.
Tires: 20" × 3.0" Urban Hybrid Tyres with a 3mm anti-puncture layer for enhanced grip and puncture resistance.
Braking System: Hydraulic dual-piston disc brakes with 180mm rotors front and rear for confident, reliable stopping power.
Smart Connectivity: ENGWE IOT Module with GPS, 4G & Bluetooth. Control and monitor your ride via the ENGWE App.
Display & Lighting: 3.5" LCD colour display (mid-position). 30 Lux front light with integrated e-horn. Auto-brightening rear light when braking or shaking.
Foldable Design: Compact step-through frame folds quickly for easy storage and transport.

📏 Specifications

General

Model: L20 3.0 Pro
Bike Weight: 32.8 kg (72.3 lbs)
Gross Weight: Approx. 42 kg (92.6 lbs)
Max Load Capacity: 150 kg (330 lbs)
Rider Height: 155 cm – 190 cm (5'1" – 6'3")
Pedal Assist: 5 Levels
Lab Tested Range: 160 km (Fully Charged)
Real-World Range: 140 km (PAS 1) / 110 km (PAS 3) / 96 km (PAS 5)
Waterproof Rating: IPX7 (Wiring) / IPX6 (Display & Lights) / IPX5 (Motor & Controller) / IPX4 (Battery Box)
Certification: CE (EN15194)
Terrain: Tarmac Roads, Gravel-Paved Paths, Sandy Beaches & Grass, Country Roads & Paved Trails

Frame & Fork

Frame Material: 6061 Aluminium Alloy, Internal Battery, Step-Through Design
Frame Style: Compact, Full Suspension
Fork: Hydraulic, Adjustable Lockout, One-Piece Die-Cast Aluminium
Rear Suspension Travel: 30mm

Wheels & Tyres

Tires: 20" × 3.0" Urban Hybrid Tyres
Puncture Protection: 3mm Anti-Puncture Layer
Wheels: 20-inch, Double-Wall Aluminium, 36-Hole, 12-Gauge Spokes, Black

E-Bike System

Motor: Mivice X700 Mid-Drive, 48V
Max Torque: 100 Nm
Assist System: Torque Sensor
IOT: ENGWE IOT Module with GPS, 4G & Bluetooth
Battery: 48V 15Ah (720Wh), Samsung 21700 Cells with BMS Protection
Charger: 54.6V 8A Output
Display: 3.5" LCD Colour Display, ENGWE-Designed, Mid-Position
ENGWE App: App Control Available
Front Light: 30 Lux with Integrated E-Horn
Rear Light: Auto-brightens when braking or shaking

Brakes

Brake Type: Hydraulic, Dual-Piston
Disc Rotor: 180mm Front & Rear

Drivetrain

Chain: KMC E8S Anti-Rust, 112 Links
Chainring: 48T
Crank: 170mm
Rear Derailleur: Shimano Tourney RD-TY300, 7-Speed
Shifter: Shimano SL-M315-7R
Cassette: 7-Speed, 14T–28T
Pedals: Boron Steel, Non-Foldable

Cockpit

Handlebars: 680mm Width
Stem: Foldable
Saddle: ENGWE Soft Saddle
Seat Post: 10-Level Adjustable
Seat Clamp: Quick-Release

👥 Geometry

A – Handlebar Height: 110.2 cm
B – Total Length: 172.0 cm
C – Reach: 51.2 cm
D – Standover Height: 38 cm
E – Wheelbase: 116.5 cm
F – Min Saddle Height: 82.0 cm
G – Max Handlebar Height: 102.0 cm

📦 Size & Packaging

Rider Height: 155 cm – 190 cm (5'1" – 6'3")
Max Load Capacity: 150 kg (330 lbs)
Package Dimensions (L×W×H): 144 × 27 × 64 cm

Folded Size: 102 × 53 × 78 cm

A – Height: 78 cm
B – Length: 102 cm
C – Width: 53 cm

Ideal For

The ENGWE L20 3.0 Pro is perfect for riders seeking a powerful, smart, and versatile e-bike that handles daily commutes and light off-road trails with ease. Its combination of range, torque, full suspension, and connected features caters to a wide range of cycling enthusiasts.

Cycle to Work Bikes

Engwe L20 3.0 Pro Electric Bike

Engwe L20 3.0 Boost Electric Bike

Engwe L20 Boost Electric Bike

Engwe L20 13Ah Electric Bike Battery

Fiido Air Ultra-Light Carbon Fiber E-Bike

Engwe EP-2 3.0 Boost Electric Bike

Fiido T2 Electric Cargo Bike

Fiido X 2025 Electric Bike

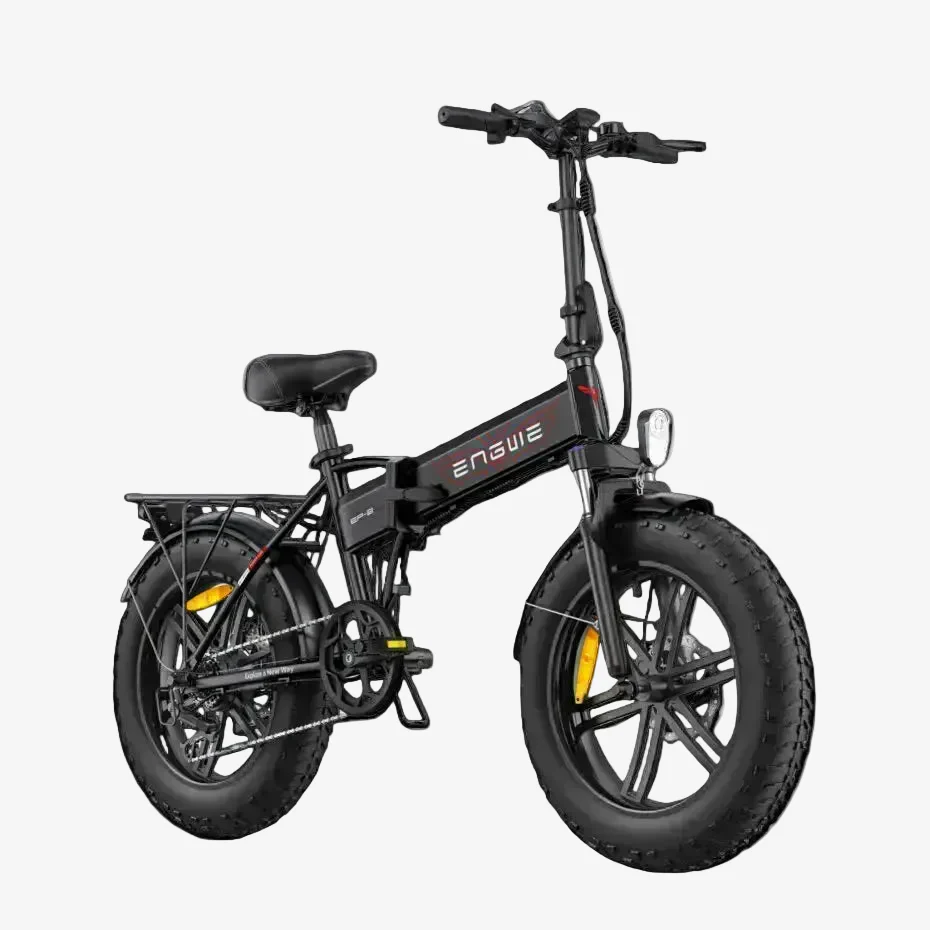

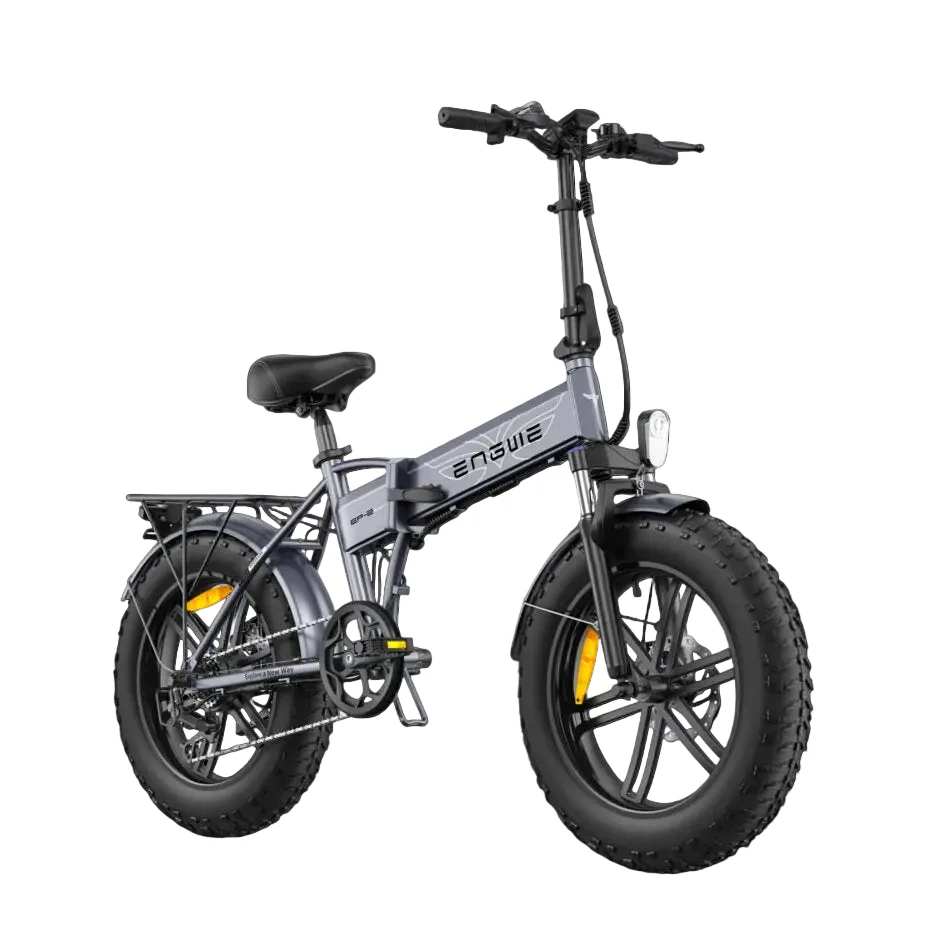

ENGWE EP-2 Boost Electric Bike
